SCADA MASTERS FOLDED DIPOLE ANTENNAS



SM Folded Dipole Antennas are shipped FREE USPS to cut shipping costs
and delivery time. All hardware is provided, you provide the mast or
tower for mounting. For high gain multiple dipole arrays, just folow the

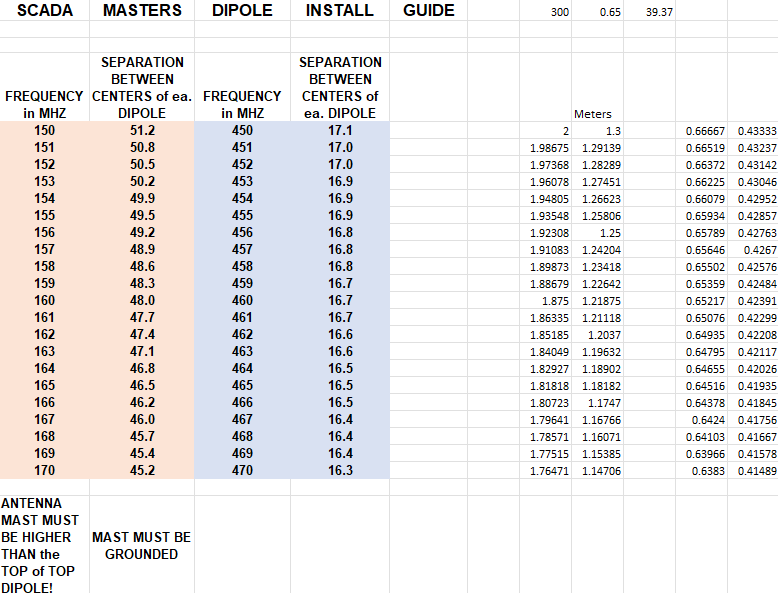

installation charts for dipole separation.

YOU CONTROL the radiation pattern by adjusting offset distance from
mast or tower during installation, (see pictures for patterns)!

For optimized results, the mast should extend ABOVE and BELOW the top
and bottom dipoles!

BASIC SPECIFICATIONS for all SM-Folded Dipole Antennas:

1/4 wave coaxial line matching circuit provides WIDE BANDWITH with
accurate 50 OHMS matching.

N-FEMALE termination.

All antenna parts are made of high-grade aluminum .

All connections are soldered with 2 layers of sealing.

DC grounded for better lightning and anti-static protection.

Maximum gain is achieved by coupling single dipoles into a
phased array. The distance between the center of dipoles is .8
wavelength (See Installation Chart).

SM-FD150-1

This a single dipole wide band VHF antenna for professional radio systems.
Frequency range:    130–175 MHz.
Bandwidth SWR < 1.5:    40 MHz.
Gain :            3 dBd
Max Power rating :    300 Watts
Overall dimensions :    3'h x 3'w Installed
Shipping Weight :       2.5 lbs

SM-FD150-2

This a dual dipole wide band VHF antenna for professional radio systems.
Frequency range:    130–175 MHz.
Bandwidth SWR < 1.5:    40 MHz.
Gain :            6 dBd
Max Power rating :    300 Watts
Overall dimensions :    6'h x 3'w Installed
Shipping Weight :       7 lbs
Impedance:        50 ohms
Termination:        N-Female
Lightning protection:    DC Ground



SM-FD150-4

This a QUAD dipole wide band VHF antenna for professional radio systems.
Frequency range:    130–175 MHz.
Bandwidth SWR < 1.5:    40 MHz.
Gain :            9 dBd
Max Power rating :    300 Watts
Overall dimensions :    12'h x 3'w Installed
Shipping Weight :       15 lbs

SM-FD150-4

This a QUAD dipole wide band VHF antenna for professional radio systems.
Frequency range:    130–175 MHz.
Bandwidth SWR < 1.5:    40 MHz.
Gain :            12 dBd
Max Power rating :    300 Watts
Overall dimensions :    16'h x 3'w Installed
Shipping Weight :       35 lbs

SM-FD150-4

This a QUAD dipole wide band VHF antenna for professional radio systems.
Frequency range:    130–175 MHz.
Bandwidth SWR < 1.5:    45 MHz.
Gain :            9 dBd
Max Power rating :    300 Watts
Overall dimensions :    15'h x 3'w Installed
Shipping Weight :       15 lbs

SM-FD150-8

This a EIGHT dipole wide band VHF antenna for professional radio systems.
Frequency range:    140–170 MHz.
Bandwidth SWR < 1.5:    30 MHz.
Gain :            12 dBd
Max Power rating :    300 Watts
Overall dimensions :    33'h x 3'w Installed
Shipping Weight :       70 lbs

SM-FD450-1

This a single dipole wide band UHF antenna for professional radio systems.
Frequency range:    360-520 MHz.
Bandwidth SWR < 1.5:    160 MHz.
Gain :            3 dBd
Max Power rating :    300 Watts
Overall dimensions :    1'h x 1'w Installed
Shipping Weight :       2.0 lbs


SM-FD450-2

This a DUAL dipole wide band UHF antenna for professional radio systems.
Frequency range:    380-480 MHz.
Bandwidth SWR < 1.5:    100 MHz.
Gain :            6 dBd
Max Power rating :    300 Watts
Overall dimensions :    3'h x 1'w Installed
Shipping Weight :       5.0 lbs



SM-FD450-4

This a QUAD dipole wide band UHF antenna for professional radio systems.
Frequency range:    380-480 MHz.
Bandwidth SWR < 1.5:    100 MHz.
Gain :            9 dBd
Max Power rating :    300 Watts
Overall dimensions :    6'h x 1'w Installed
Shipping Weight :       12.0 lbs



SM-FD450-8

This an EIGHT dipole wide band UHF antenna for professional radio systems.
Frequency range:    400-470 MHz.
Bandwidth SWR < 1.5:    70 MHz.
Gain :            12 dBd
Max Power rating :    300 Watts
Overall dimensions :    14'h x 1'w Installed
Shipping Weight :       30.0 lbs
